Somfy Ysia Zigbee 5-Channel Remote–1871158
SKU: 1871158
SKU: 1871158. The Somfy Ysia Zigbee 5-Channel Remote provides wireless, multi-zone control for up to five Zigbee-enabled blinds or devices. Features a modern design, intuitive interface, and up to 4 years of battery life.
Delivery: 5-7 working days
Product Overview

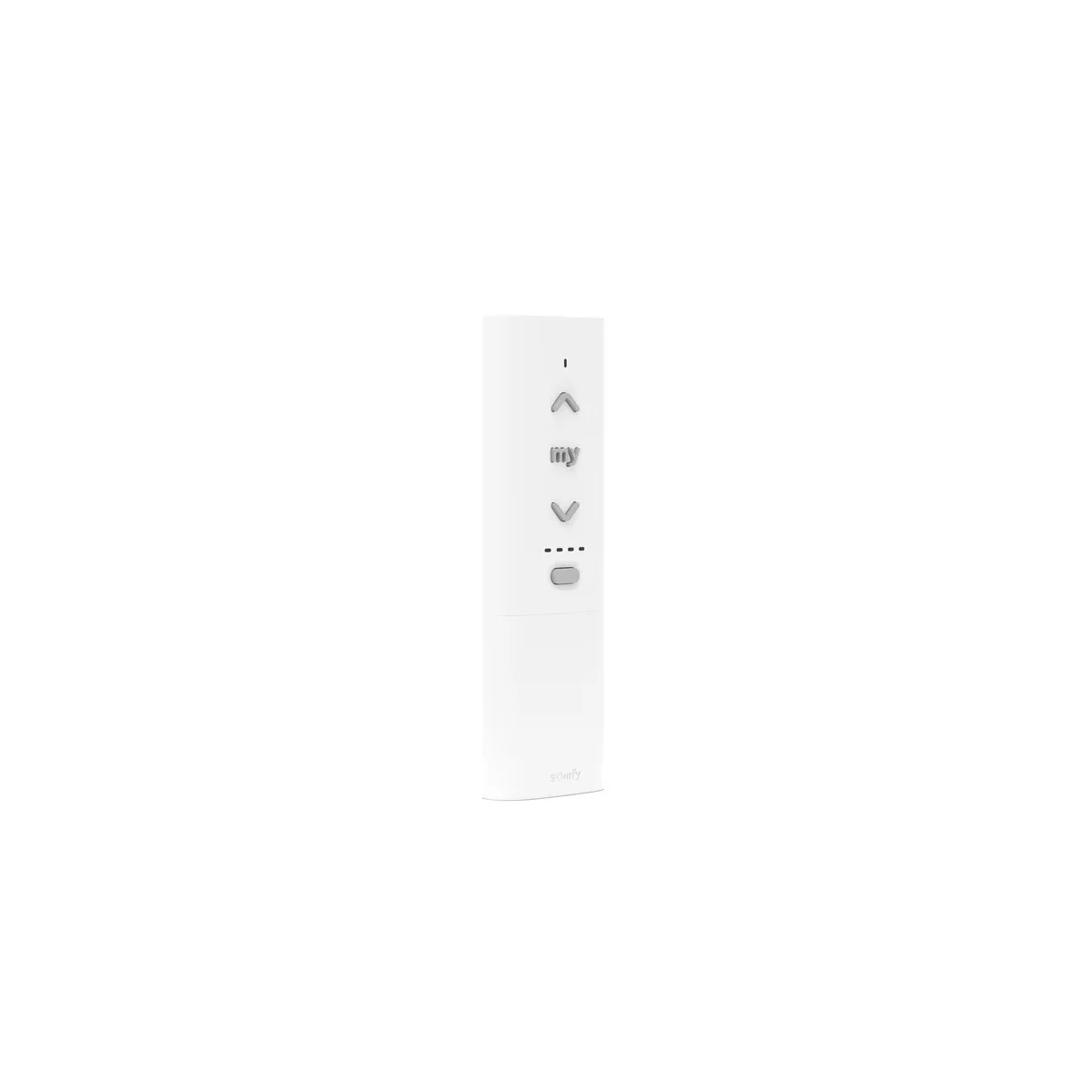

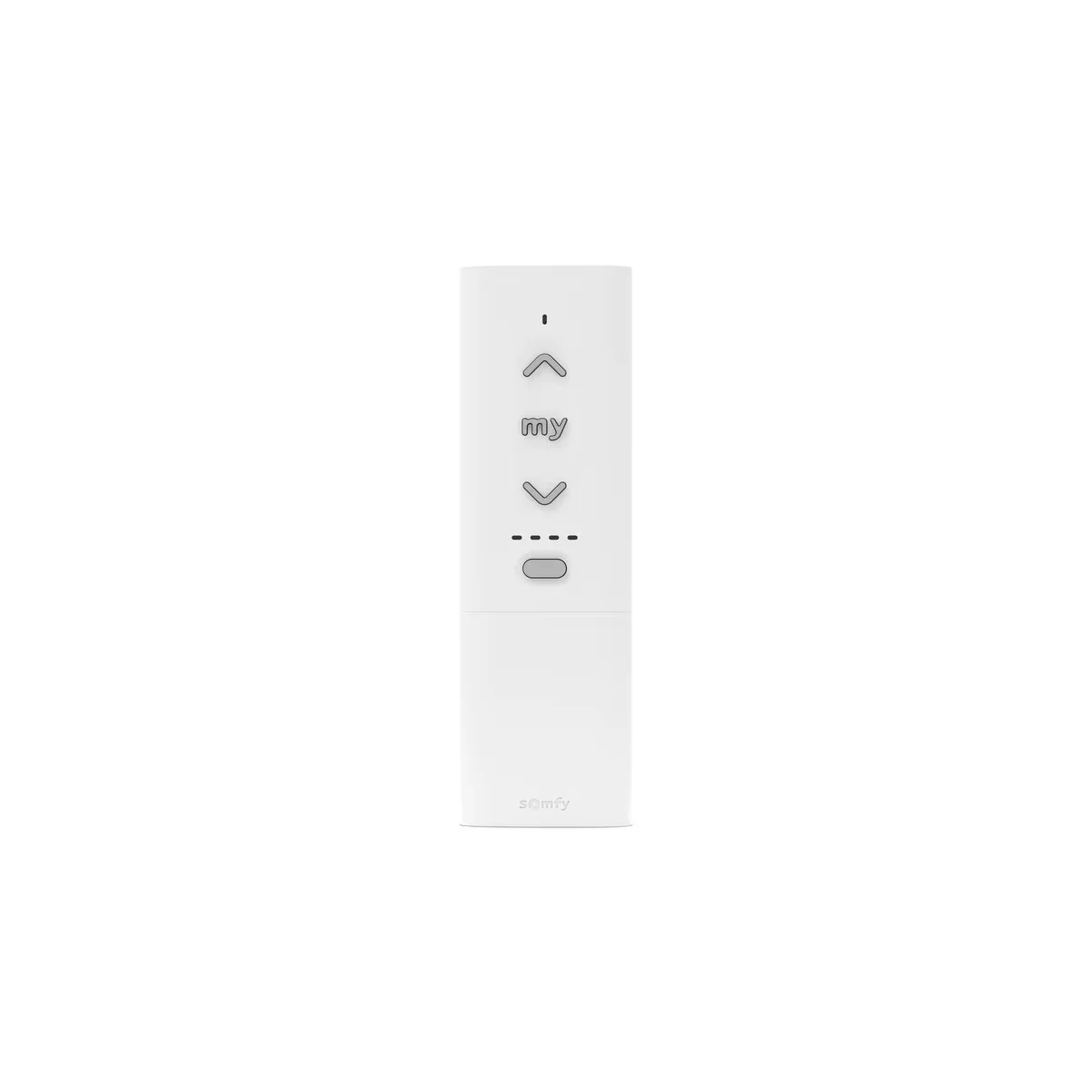

The Somfy Ysia Zigbee 5-Channel Remote (1871158) is the ultimate solution for managing multiple Zigbee-enabled blinds, curtains, lighting, and other smart home devices. With five independent channels, you can control up to five individual devices or groups, making it ideal for multi-room or multi-zone automation.

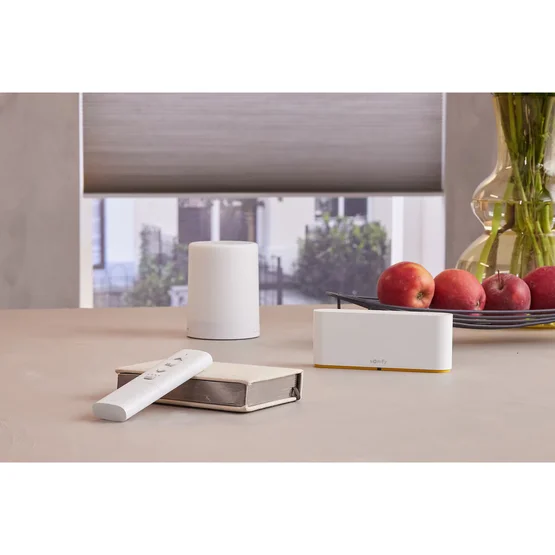

Designed for seamless integration into any interior, the Ysia remote features a slim, discreet profile and a user-friendly button layout. Each channel is easily selectable, allowing you to program and operate devices independently or in groups. The remote operates on the Zigbee 3.0 protocol, ensuring compatibility with a wide range of Somfy Zigbee motors and smart home ecosystems. Visual LED feedback guides you through setup and operation, whether used standalone or as part of a connected smart home hub.

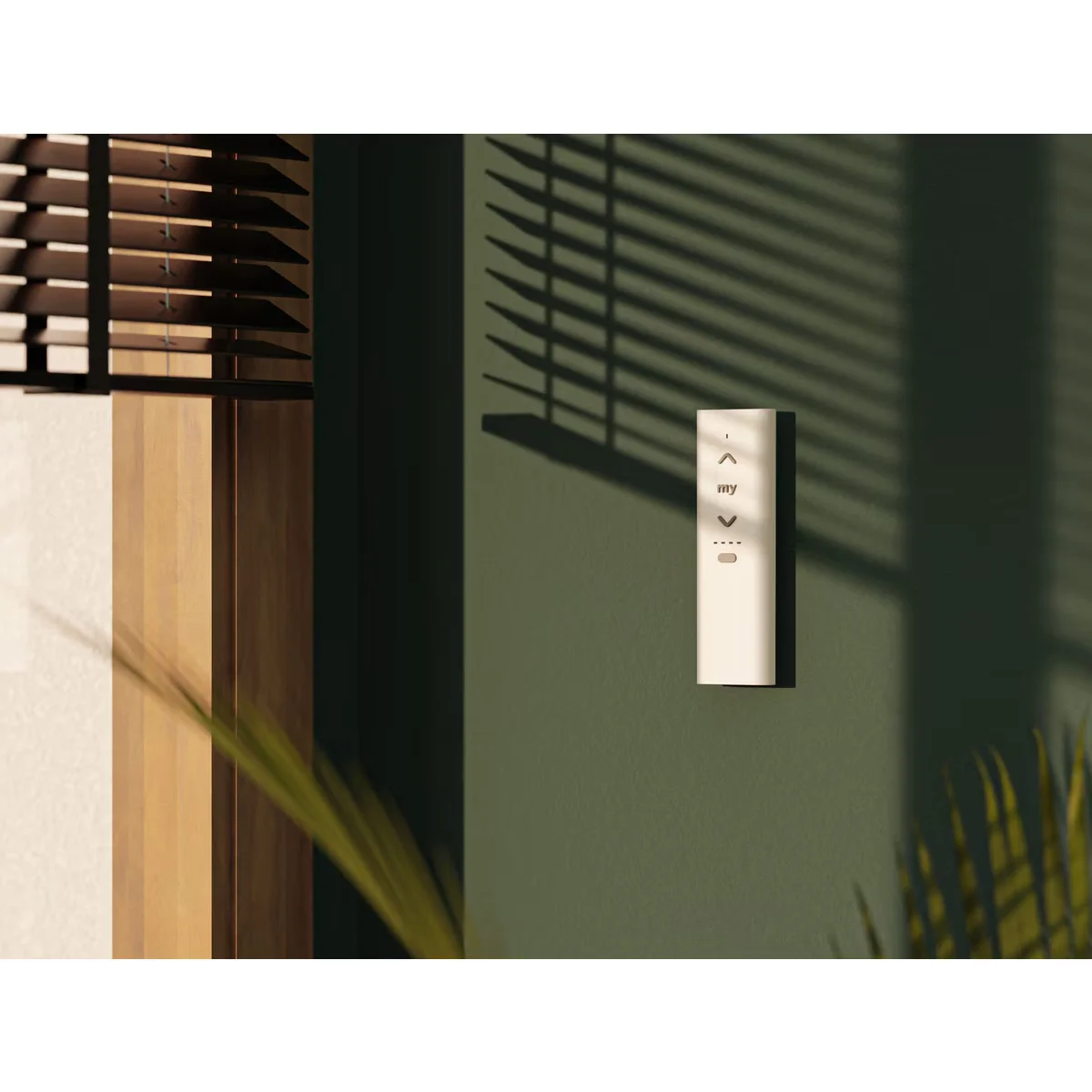

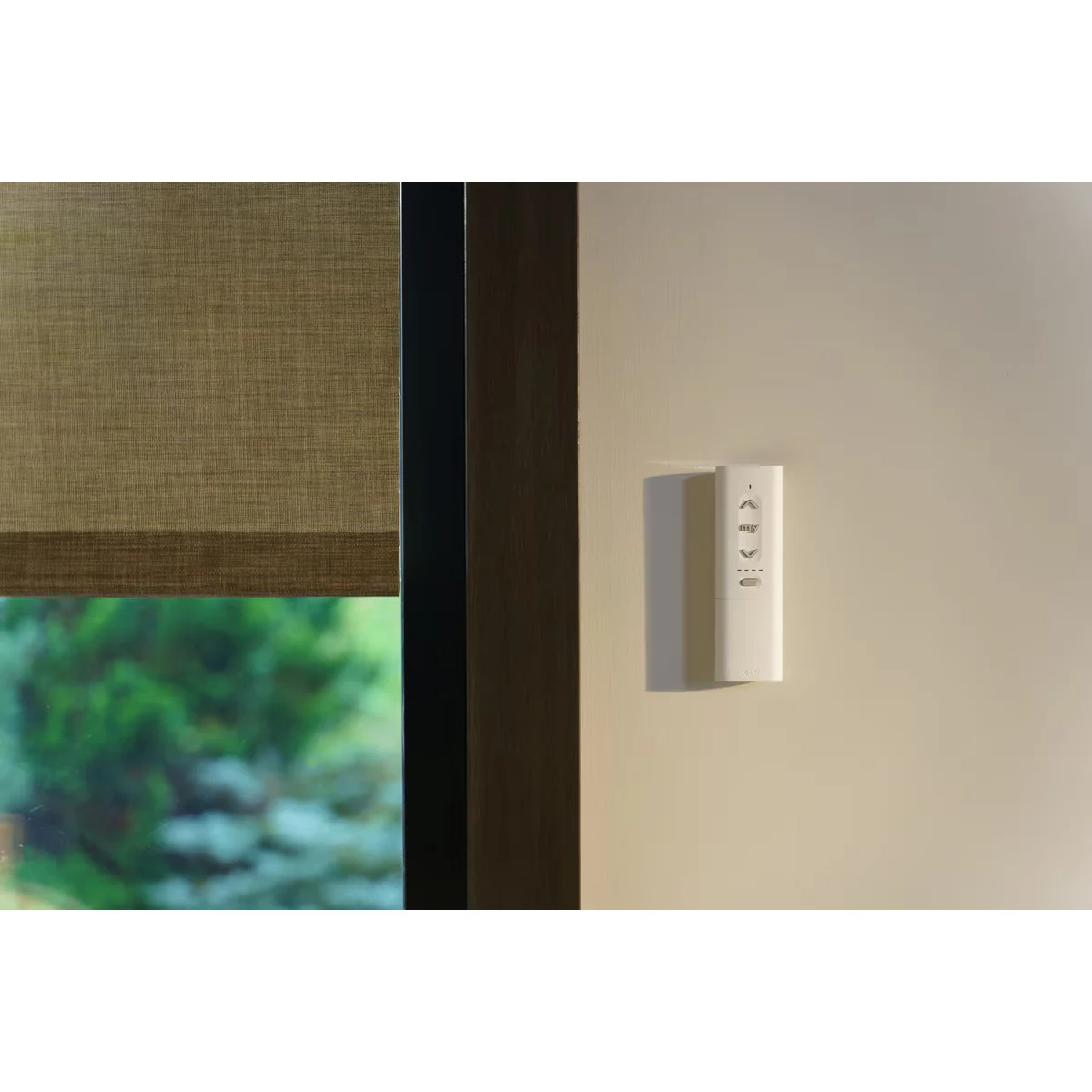

The Ysia 5-Channel Remote is powered by two AAA batteries (included), offering up to four years of autonomy for reliable, maintenance-free operation. Its shock- and splash-proof housing ensures durability, while the included wall mount and screw kit provide flexible installation options. Finished in Somfy’s signature Pure/White color, the remote complements any décor.
Whether you’re adding advanced control to your smart home or upgrading your existing setup, the Somfy Ysia Zigbee 5-Channel Remote delivers powerful, stylish, and intuitive performance for all your automation needs.
Handsets and Switches
If you are looking for simple radio operated switches or handsets to operate your new or existing blinds, we have a range below. Starting with simple single channel handsets and ranging to more sophisticated multi-channel handsets and timers.
| File Name | Size | Date | |
|---|---|---|---|
| 5162035A-Ysia-Zigbee-5-Channel-Remote.pdfDownload | 1.91 MB | 24/09/2025 | |
| 5162039A-Safety-controls-situo-Ysia-Zigbee-5-Channel-Remote.pdfDownload | 728.95 KB | 24/09/2025 | |
| PEP-ecopassport-Ysia-Zigbee-5-Channel-Remote.pdfDownload | 433.7 KB | 24/09/2025 | |
| Ysia1-5-Zigbee-vs4-1-.pdfDownload | 439.38 KB | 24/09/2025 |
- Product Code
- 1871158
- Connection Type
- Zigbee 3.0 Wireless
- Number of Channels
- 5
- Buttons
- Open, Close, ‘My’ (favorite position) per channel
- Battery Type
- 2 x AAA (LR3), included
- Battery Voltage
- 3 V
- Battery Life
- Up to 4 years
- Dimensions
- 135 mm (L) x 42 mm (W) x 17 mm (H)
- Weight
- 72 g (unwrapped)
- Range
- Up to 50 m (open field)
- Protection Index
- IP 20
- Operating Temperature
- 0°C to 48°C
- Storage Temperature
- -20°C to 60°C
- Color/Finish
- Pure/White
- Material
- Plastic and metal
- Antenna
- Integrated
- Mounting
- Wall bracket and screw kit included
- Compatibility
- Somfy Zigbee motors, Zigbee 3.0 smart home systems (not compatible with RTS or IO)
- Certifications
- CE and international standards
- Unpack the Somfy Ysia Zigbee 5-Channel Remote and ensure all components are present.
- Insert the two included AAA batteries into the remote.
- Mount the wall bracket using the provided screws or adhesive, if desired.
- Select the desired channel using the channel selector button.
- Pair the remote with your Zigbee-enabled device or smart home hub following the device’s pairing instructions.
- Use the open, close, and ‘my’ buttons to control your blinds, curtains, or lighting on each channel.
- Program the ‘my’ button on each channel to save your preferred position.
- Check the LED feedback for confirmation of successful pairing and operation.
- Replace batteries as needed (up to 4 years of typical use).
How many devices can I control with the Ysia Zigbee 5-Channel Remote?
You can control up to five individual Zigbee-enabled devices or groups, one per channel.
Is this remote compatible with Somfy RTS or IO products?
No, the Ysia Zigbee remote is only compatible with Zigbee 3.0 devices and systems.
How do I switch between channels?
Use the channel selector button to choose the desired channel before operating your device.
How do I program the ‘my’ button for each channel?
Move your blind or device to the desired position on the selected channel, then press and hold the ‘my’ button to save it as your favorite.
What is the battery life?
The remote offers up to 4 years of battery life with the included AAA batteries.
Can I mount the remote on the wall?

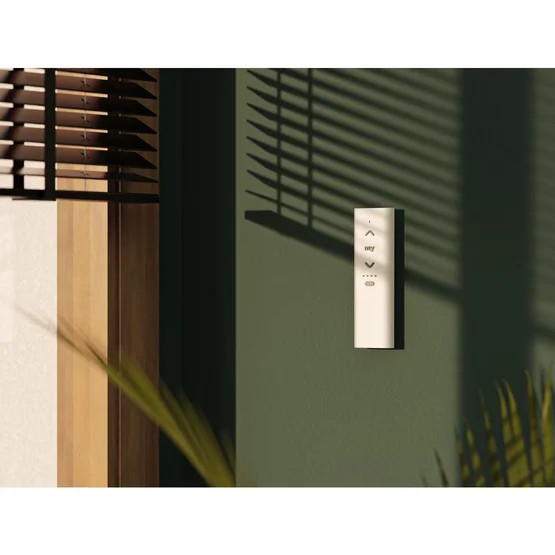

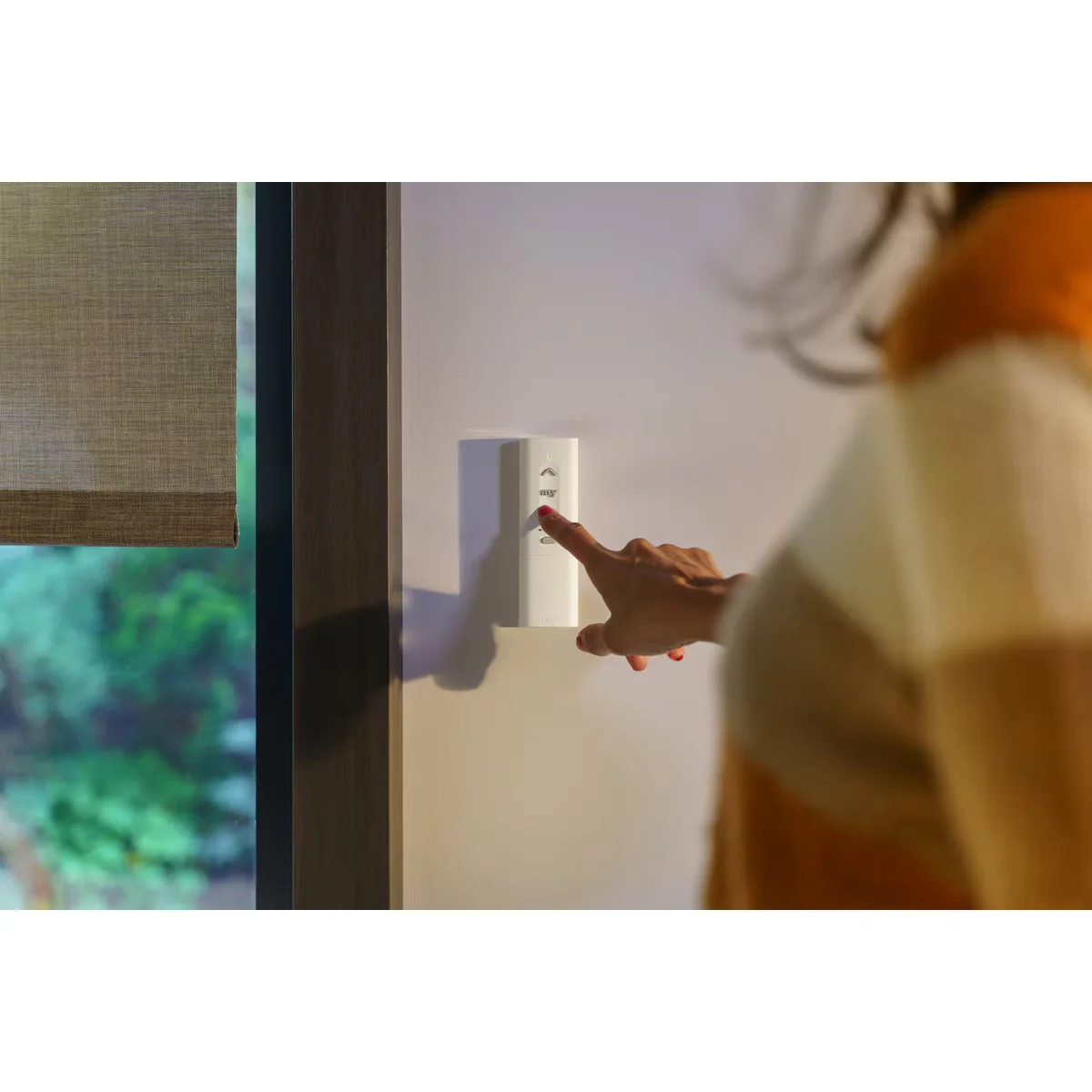

Yes, a wall bracket and screw kit are included for easy mounting.
What is the wireless range?
The remote has a range of up to 50 meters in open field conditions.
Is the remote durable?
Yes, it features a shock- and splash-proof housing for everyday durability.
