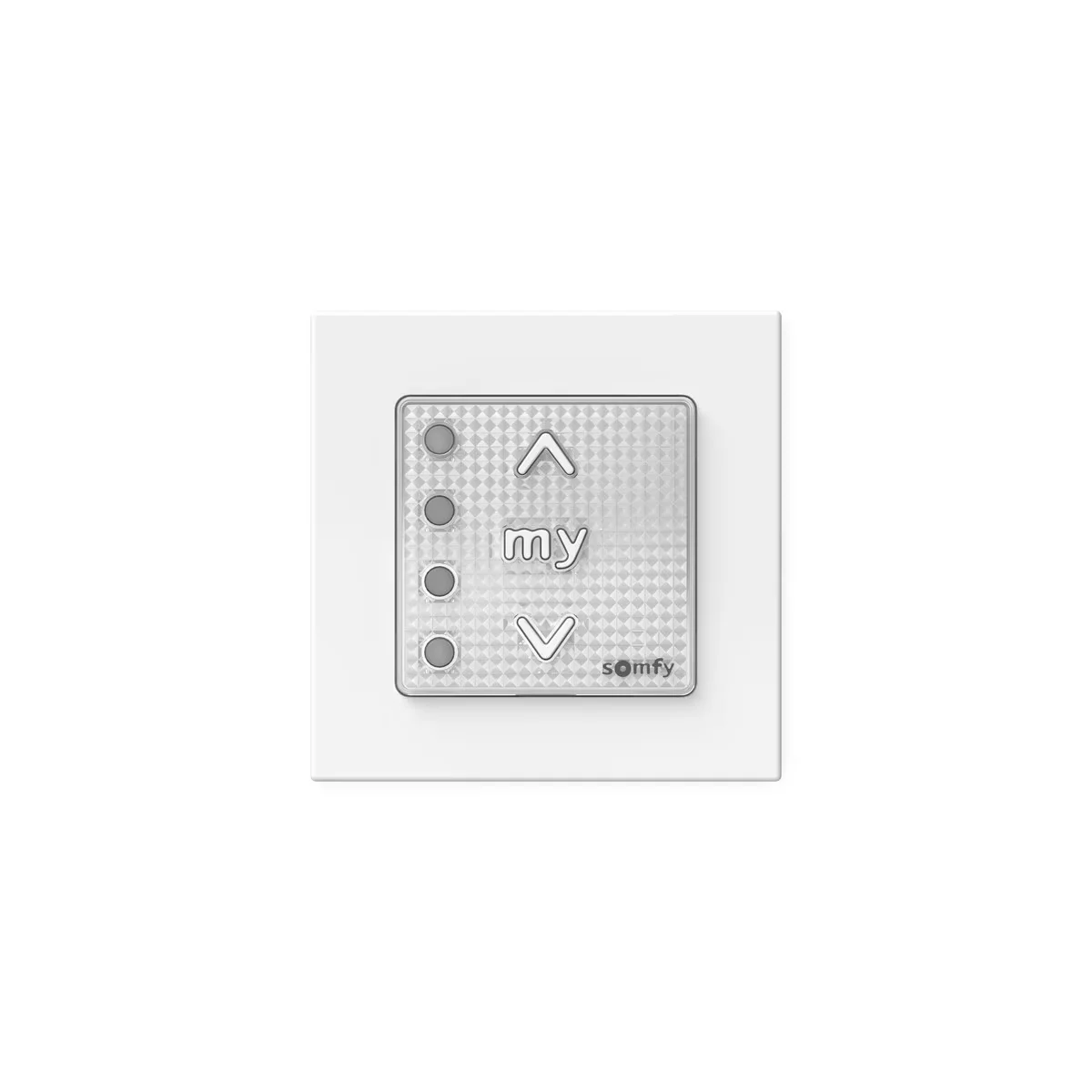

Somfy Smoove Origin 4 RTS II Wall Switch –1871373
SKU: 1871373
Product Code: 1871373. The Somfy Smoove Origin 4 RTS II is a 4-channel wireless wall switch for individual or grouped control of blinds, curtains, and shading. Features Up/Down/My buttons, temporary group creation, low battery indicator, and a modern white frame.
Delivery: 5-7 working days
Product Overview
The Somfy Smoove Origin 4 RTS II (1871373) is a versatile, wall-mounted control switch designed for seamless operation of up to four motorised blinds, curtains, or shading devices. Using reliable RTS (Radio Technology Somfy) wireless communication, this switch allows you to control four individual applications or groups, or create temporary groups for simultaneous operation with a simple touch.
The Smoove Origin 4 RTS II features dedicated Up, Down, and “My” (favourite position) buttons for each channel, making it easy to move your blinds to preset or custom positions. Temporary groups can be created by selecting multiple channels before issuing a command, allowing for flexible, on-the-fly control of several blinds at once—ideal for open-plan spaces or large windows.
With its modern, minimalist design and included white frame, the Smoove Origin 4 RTS II blends effortlessly into any interior. The switch is battery-powered (CR2032 included), requires no wiring, and can be installed anywhere on your wall. A low battery indicator ensures you’re never caught off guard, while the discrete wall bracket and compatibility with other Smoove frame colours offer further customisation.
Perfect for both new installations and retrofits, the Smoove Origin 4 RTS II is compatible with all Somfy RTS motors and is suitable for controlling interior blinds, curtains, screens, lighting, and heating. Its intuitive operation, robust build, and flexible grouping make it a top choice for smart shading control.
Handsets and Switches
If you are looking for simple radio operated switches or handsets to operate your new or existing blinds, we have a range below. Starting with simple single channel handsets and ranging to more sophisticated multi-channel handsets and timers.
| File Name | Size | Date | |
|---|---|---|---|
| 5167832B-Safety-control-Type-8-Smoove-4-RTS-II-frame.pdfDownload | 426.38 KB | 25/09/2025 | |
| 5176804A-Smoove-4-RTS-II-framepdf.pdfDownload | 14.76 MB | 25/09/2025 | |
| 5176805A-Smoove-4-RTS-II-frame.pdfDownload | 2.53 MB | 25/09/2025 | |
| PEP-ecopassport-Smoove-4-RTS-II-frame.pdfDownload | 485.91 KB | 25/09/2025 |
- Product Code
- 1871373
- Technology
- RTS (Radio Technology Somfy)
- Channels
- 4 (individual or grouped control)
- Control Buttons
- Up / My (stop/favourite) / Down per channel
- Temporary Grouping
- Up to 11 temporary groups
- Radio Frequency
- 433.42 MHz
- Range
- 150m (open field)
- Power
- 1 x CR2032 battery (included), 5-year autonomy (4 orders/day)
- Low Battery Indicator
- Yes
- Dimensions
- 50mm (W) x 50mm (H) x 12mm (D)
- Weight
- 0.022kg (unwrapped)
- Colour
- Pure White (frame included, other colours available)
- Protection Index
- IP20
- Operating Temperature
- 0°C to +48°C
- Storage Temperature
- -20°C to +60°C
- Mounting
- Wall-mounted, fits DIN 50x50 frames with adapter
- Applications
- Interior blinds, curtains, screens, lighting, heating, rolling shutters, awnings, pergolas, verandas, external venetian blinds, exterior vertical screens
- Compatibility
- All Somfy RTS motors and devices
- Accessories
- Discrete wall bracket, compatible with Smoove coloured frames
- Warranty
- Manufacturer’s warranty (see leaflet for details)
- Limits of Use
- Indoor use only; avoid placement near metallic materials; do not clean with abrasive products or solvents
- Unpack the Smoove Origin 4 RTS II and insert the included CR2032 battery.
- Mount the switch on your wall using the supplied bracket and frame.
- Pair each channel with your Somfy RTS motorised blind, curtain, or device following the motor’s programming instructions.
- Use the channel selector LEDs to choose the blind or group you wish to control.
- Operate blinds using the Up, Down, or “My” (favourite position) buttons.
- To create a temporary group, select multiple channels before issuing a command.
- Replace the battery when the low battery indicator is displayed.
- Refer to the user manual for advanced features and troubleshooting.
How many blinds can I control with the Smoove Origin 4 RTS II?
You can control up to four individual blinds or groups, and create temporary groups for simultaneous operation.
Is the switch wireless and battery-powered?
Yes, it uses RTS wireless technology and is powered by a CR2032 battery (included).
Can I install the switch anywhere?
Yes, it requires no wiring and can be mounted anywhere on your wall.
What is the “My” button?
The “My” button moves your blind to a preset favourite position with a single touch.
Is it compatible with all Somfy RTS motors?
Yes, it works with all Somfy RTS motorised blinds, curtains, and compatible devices.
Can I use different frame colours?
Yes, the switch is supplied with a white frame but is compatible with other Smoove frame colours.
What is the radio range?
Up to 150m in open field.
What happens if the battery runs low?
A low battery indicator will alert you; simply replace the CR2032 battery.
