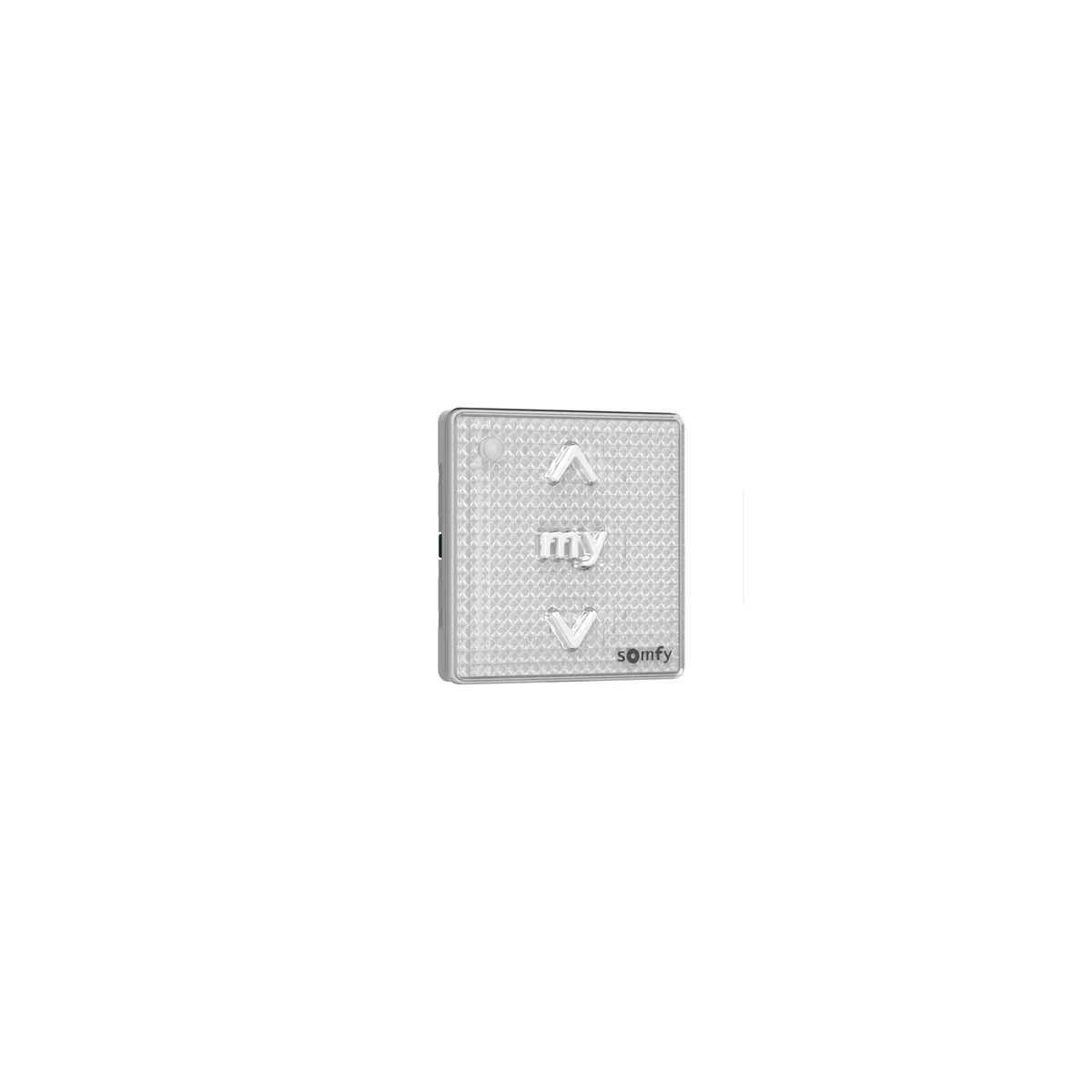

Somfy Smoove 1 RTS II Wireless Wall Switch – Pure 1871347
SKU: 1871347
Product Code: 1871347. The Somfy Smoove 1 RTS II Wireless Wall Switch offers single-channel, touch-sensitive control for Somfy RTS blinds, curtains, and awnings. Battery-powered for easy, wire-free installation, it features Up, Down, and “My” buttons, a Pure (white) finish, and is compatible with all Somfy RTS protocol devices.
Delivery: 3 to 5 working days
Product Overview

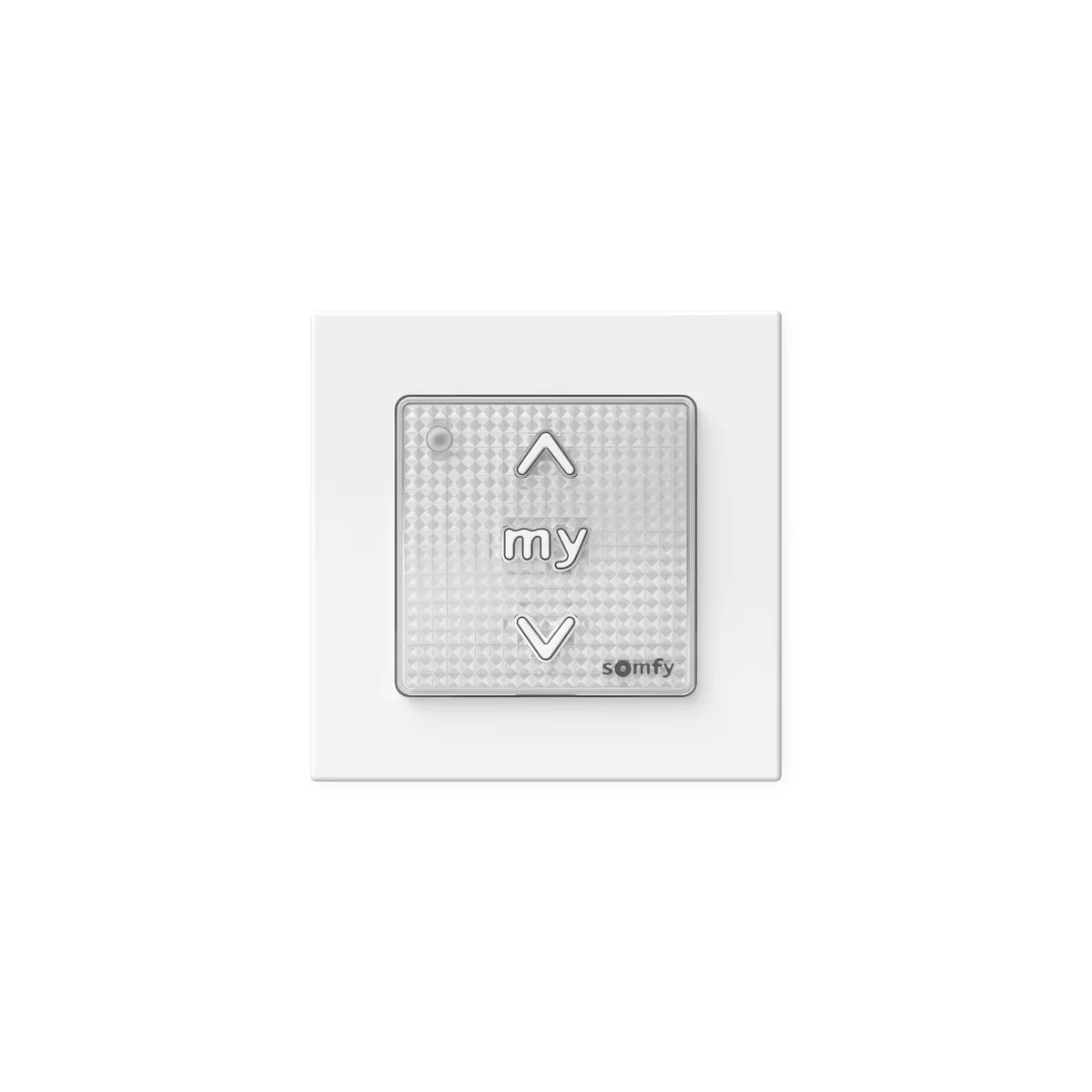

The Somfy Smoove 1 RTS II Wireless Wall Switch (Product Code: 1871347) is a modern, touch-sensitive control solution designed for seamless operation of your Somfy RTS-enabled blinds, curtains, awnings, and more. With its sleek Pure (white) finish and included frame, this wall switch blends effortlessly into any interior décor.
Installation is quick and straightforward—no wiring or electrical work is required, thanks to its integrated CR2032 battery. The switch can be mounted anywhere indoors using the included adhesive or screws, making it ideal for both new installations and retrofits. The Smoove 1 RTS II provides intuitive Up, Down, and “My” (stop/preset) buttons, allowing you to raise, lower, or stop your window coverings and store a favorite position for instant recall.
Engineered for reliability, the switch operates on the 433.42 MHz radio frequency, offering a range of up to 50 meters in open field. An audible signal confirms each command, and a low battery indicator ensures you’re never caught off guard. The device is compatible exclusively with Somfy RTS protocol products and is not suitable for io-homecontrol systems.
Perfect for controlling a single blind or a group of blinds, the Smoove 1 RTS II is suitable for a wide range of applications, including verandas, exterior vertical screens, Venetian blinds, rolling shutters, swinging shutters, interior blinds, awnings, and pergolas. The package includes the wall switch, frame, mounting plate, battery, and instruction guide, all backed by a 5-year warranty for peace of mind.
Handsets and Switches
If you are looking for simple radio operated switches or handsets to operate your new or existing blinds, we have a range below. Starting with simple single channel handsets and ranging to more sophisticated multi-channel handsets and timers.
- Control Options: Wall Switch
- Control Protocol: SOMFY RTS
- Cut off Date: 18/12/2024, 5pm
- Accessory Type: Wall Switch
- Motorisation Brand: Somfy
- Power: Disposable Battery
| File Name | Size | Date | |
|---|---|---|---|
| 5167832B-Safety-control-Type-8.pdf-.pdfDownload | 426.38 KB | 29/09/2025 | |
| 5176782A-Smoove-1-RTS-II.pdfDownload | 9.21 MB | 29/09/2025 | |
| 5176784A-Smoove-1-RTS-II.pdfDownload | 2.2 MB | 29/09/2025 | |
| PEP-ecopassport-Smoove-4-RTS-II-C-EN.pdfDownload | 485.91 KB | 29/09/2025 | |
| PEP-ecopassport-SMOOVE-II-RTS-EN.pdfDownload | 485.91 KB | 29/09/2025 |
- Product Code
- 1871347
- Number of Channels
- 1
- Control Type
- Touch-sensitive (Up, Down, “My”/Stop)
- Radio Frequency
- 433.42 MHz (RTS)
- Range
- Up to 50 meters (open field)
- Power
- 1 x CR2032 battery (included)
- Battery Voltage
- 3V
- Battery Life
- Up to 5 years (4 operations/day)
- Dimensions (Switch)
- 50 x 50 x 12 mm
- Dimensions (Frame)
- 80 x 80 x 10 mm
- Weight
- 22g (unwrapped)
- Protection Index
- IP20 (indoor use)
- Operating Temperature
- 0°C to 45°C
- Storage Temperature
- 20°C to 60°C
- Color/Finish
- Pure (white)
- Material
- Plastic
- Compatibility
- Somfy RTS protocol devices only
- Warranty
- 5 years
- Package Contents

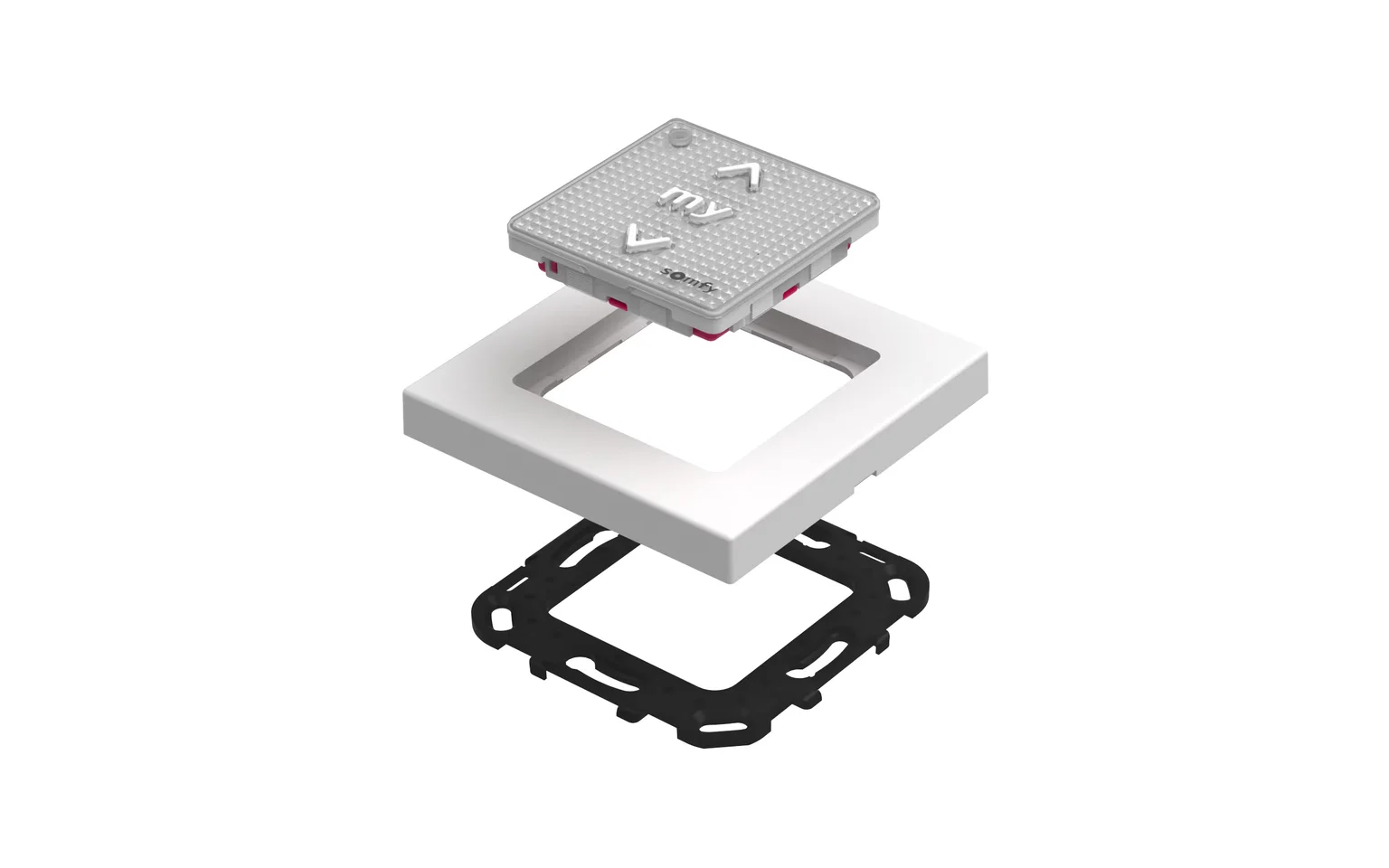

- Wall switch, frame, mounting plate, battery, instruction guide, safety leaflet
- Remove the Smoove 1 RTS II switch and frame from the packaging.
- Insert the included CR2032 battery into the switch.
- Select a suitable indoor location and mount the switch using adhesive or screws.
- Pair the switch with your RTS-enabled device by following the device’s programming instructions.
- Use the Up, Down, and “My” buttons to operate your blind or device.
- Set your favorite position by moving the blind to the desired spot and holding the “My” button until the device jogs.
- Recall your favorite position by pressing the “My” button.
- Monitor the low battery indicator and replace the battery as needed.
- Refer to the user manual for advanced programming or troubleshooting.
What can I control with the Smoove 1 RTS II wall switch?
You can control one RTS-enabled blind, curtain, awning, or a group of devices.
Is installation truly wireless?
Yes, the switch is battery-powered and requires no wiring or electrical work.
How do I know when the battery is low?
The switch features a low battery indicator for timely replacement.
What battery does the switch use?
The switch uses a single CR2032 battery, which is included.
Can I mount the switch anywhere?
Yes, it can be mounted on any indoor wall using adhesive or screws.
Is this switch compatible with Somfy io-homecontrol products?
No, it is only compatible with Somfy RTS protocol devices.
What is the range of the switch?
The typical range is up to 50 meters in open field.
Is the switch easy to program?
Yes, programming is straightforward and instructions are included with your device.
