Somfy Sonesse Ultra 30 RTS Li-Ion Motor –1003310
SKU: 1003310
SKU: 1003310. The Somfy Sonesse Ultra 30 RTS Li-Ion Motor delivers ultra-quiet, wireless automation for large blinds. Features a powerful 2 Nm torque, built-in rechargeable battery, and full compatibility with Somfy RTS controls and smart home systems.
Delivery: 5-7 working days
Product Overview

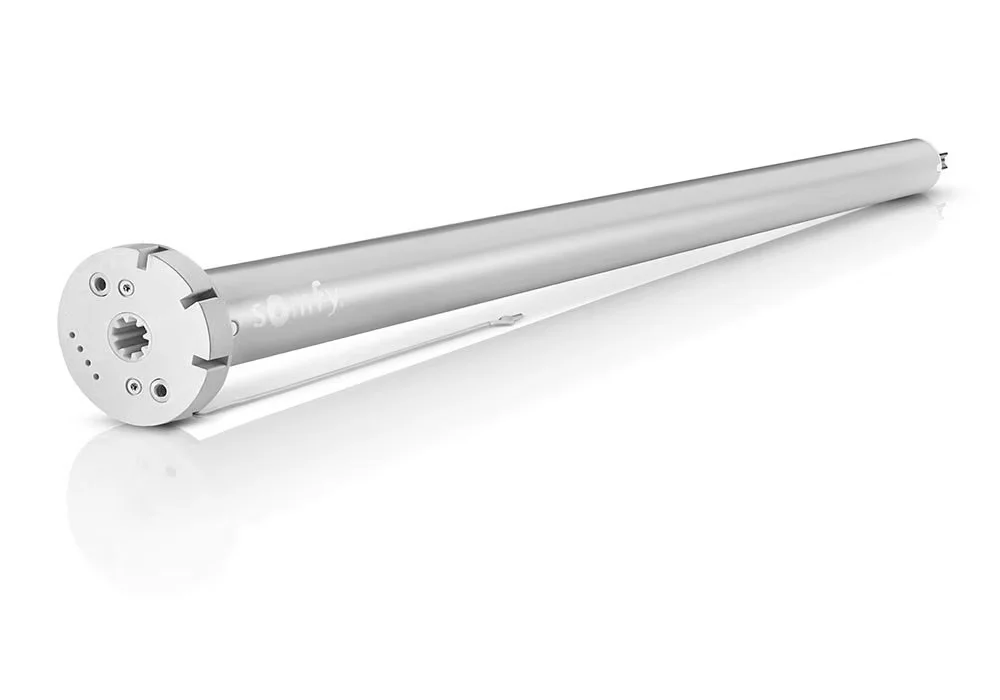

The Somfy Sonesse Ultra 30 RTS Li-Ion Motor (1003310) is engineered for the ultimate in quiet, powerful, and convenient blind automation. Designed for large interior blinds, this advanced motor features a built-in rechargeable lithium-ion battery, eliminating the need for wiring and enabling a clean, aesthetic installation. Its slim, white motor head and tubular design fit seamlessly into a wide range of blind systems, supporting tubes with a minimum internal diameter of 30 mm.
With a robust 2 Nm torque and a default speed of 20 rpm (adjustable from 10–28 rpm), the Sonesse Ultra 30 is ideal for heavier or wider blinds. The integrated battery typically requires recharging only once a year under normal use and can be easily replaced if needed. Charging is simple with the Somfy charger (9021027), and optional solar panel accessories are available for sustainable, maintenance-free operation.
The Sonesse Ultra 30 RTS Li-Ion is fully compatible with Somfy’s RTS (Radio Technology Somfy) ecosystem, allowing seamless integration with a wide range of remote controls, wall switches, and smart home hubs such as TaHoma. The motor’s electronic limit switch ensures precise positioning, while the cordless design guarantees child and pet safety by eliminating hanging cords or chains.
Whether you’re upgrading a home or specifying a commercial project, the Sonesse Ultra 30 RTS Li-Ion Motor offers a premium solution for quiet, reliable, and smart blind automation.
Notes:
- Suitable adaptors (crown, drive and motor plate) will be required. Please seek advice from your roller blind systems provider for more information.
- Accessories such as handsets, switches, chargers and adaptors are not included.
Motor
- Control Protocol: SOMFY RTS
- Accessory Type: Motor
- Power: Rechargeable Battery
| File Name | Size | Date | |
|---|---|---|---|
| Chart-Tube-Motor-adapters-interior-Sonesse-ULTRA-30-RTS-Li-Ion.pdfDownload | 1.78 MB | 24/09/2025 | |
| Compatibility-Matrix-Wirefree-Power-Supply-Sonesse-ULTRA-30-RTS-Li-Ion.pdfDownload | 145.22 KB | 24/09/2025 | |
| Installation-Guide-Sonesse-ULTRA-30-RTS-Li-Ion.pdfDownload | 1.78 MB | 24/09/2025 |
- Product Code
- 1003310
- Motor Type
- DC, Wirefree, Rechargeable Li-Ion
- Torque
- 2 Nm
- Speed
- 20 rpm (adjustable 10–28 rpm)
- Battery
- Built-in 12V, 2600 mAh Li-Ion (replaceable)
- Charging Time
- <4.5 hours (charger 9021027)
- Power Consumption
- 18 W (operation), 0.001 W (standby)
- Radio Protocol
- RTS (433.42 MHz)
- Channels
- 12
- Range
- Up to 200 m (open field)
- Memory Capacity
- 12
- Dimensions
- Length 650 mm, Diameter 30 mm, Head Diameter 44 mm
- Weight
- 0.79 kg
- Minimum Tube Internal Diameter
- 30 mm
- Protection Index
- IP 20
- Insulation Class
- III
- Noise Level
- 42 dB
- Operating Temperature
- 0°C to 60°C
- Storage Temperature
- -20°C to 60°C
- Limit Switch
- Electronic, 200 turns
- Manual Override
- Not available
- Antenna
- External
- Cable
- Removable, Molex connector
- Compatible Controls
- Somfy RTS remotes (Situo, Telis, Smoove), TaHoma, wall switches
- Accessories
- Magnetic charging cable, solar panel, crown & drive adaptors
- Warranty
- Manufacturer’s warranty (check with supplier)
- Unpack the Somfy Sonesse Ultra 30 RTS Li-Ion Motor and ensure all components are present.
- Insert the motor into the compatible blind tube (minimum 30 mm internal diameter).
- Secure the motor using the appropriate crown and drive adaptors.
- Connect the motor to the Somfy charger (9021027) and fully charge before first use.
- Pair the motor with your Somfy RTS remote or smart hub following the pairing instructions.
- Set the upper and lower blind limits using the remote control.
- Test the operation and adjust speed settings as desired.
- For ongoing use, recharge the battery as indicated by the low battery LED or approximately once per year.
How often does the battery need recharging?
Under typical use, the battery requires recharging about once a year.
Is the battery replaceable?
Yes, the built-in lithium-ion battery can be replaced if necessary.
What controls are compatible with this motor?
The Sonesse Ultra 30 RTS Li-Ion is compatible with all Somfy RTS remotes, wall switches, and smart hubs like TaHoma.
Can I use this motor with solar charging?
Yes, it is compatible with the Somfy WF Li-Ion Solar Panel accessory.
What tube sizes does this motor fit?
It fits blind tubes with a minimum internal diameter of 30 mm.
Is the motor suitable for child-safe environments?
Yes, the cordless design eliminates hanging cords or chains, making it child and pet safe.
How do I set the upper and lower limits?
Limits are set electronically using the paired Somfy RTS remote control.
What is the noise level during operation?
The motor operates at an ultra-quiet 42 dB, ideal for home and office environments.
