SOMFY Roll Up 28 Li-ion Wirefree RTS Motor - 1241444
SKU: 1241444
Product Code: 1241444. The Somfy Roll Up 28 Wirefree RTS is a battery-powered, radio-controlled motor for interior blinds. Wireless installation, child-safe, and compatible with Somfy RTS remotes and smart home systems.
Sold as a spare part. Does not include adaptors (crown, drive and motor plate) as these will differ according to your tube internal size and profile.
Delivery: before Christmas - Order by 18/12/2025, 5pm
Product Overview

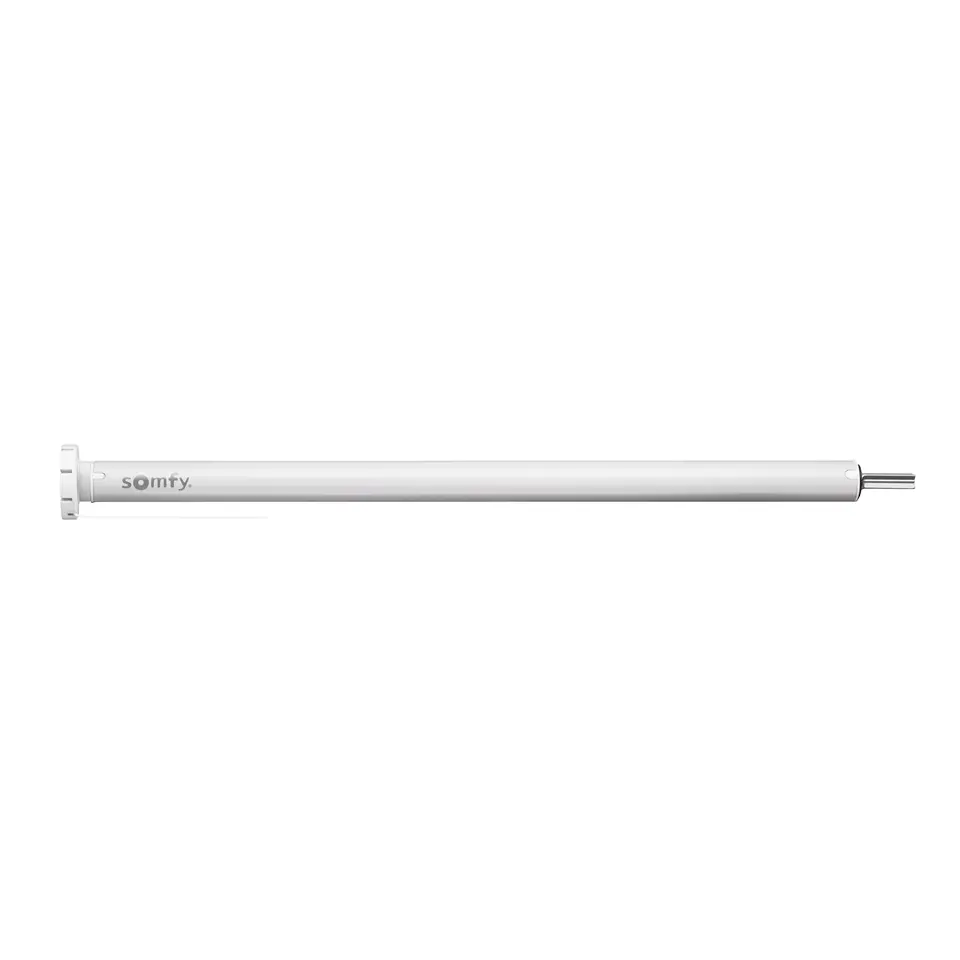

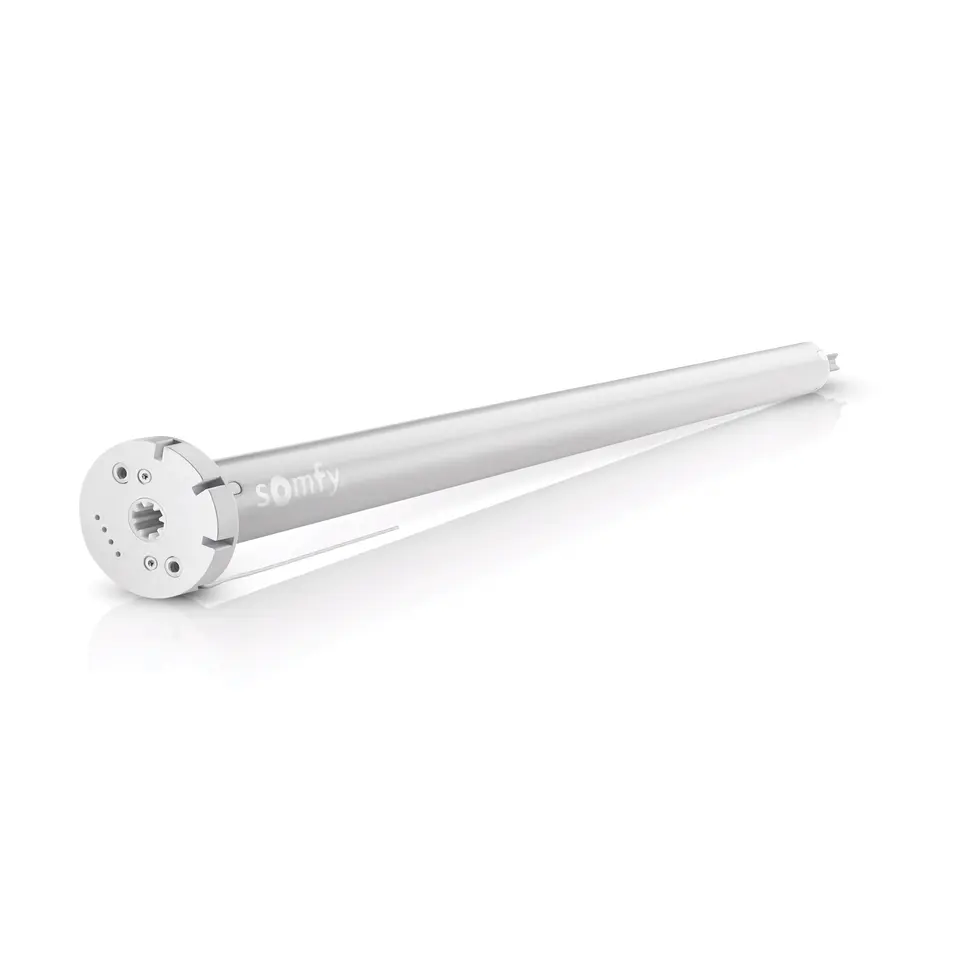

The Somfy Roll Up 28 Wirefree RTS Motor ( 1241444) is a versatile, battery-powered solution for automating interior blinds. Designed for easy, wire-free installation, this motor is ideal for both new and retrofit projects, eliminating the need for electrical wiring and making it perfect for homes, offices, and apartments.
Operating on Somfy’s reliable RTS (Radio Technology Somfy) protocol, the Roll Up 28 motor allows seamless integration with a wide range of Somfy RTS remotes, wall switches, and smart home systems such as TaHoma. The built-in rechargeable battery ensures long-lasting performance and can be conveniently recharged via a connector on the motor head. The absence of hanging cords or chains enhances child and pet safety, while the compact design fits tubes with a minimum internal diameter of 26.6mm.
With a speed of 28 rpm and a torque of 0.7 Nm, the Roll Up 28 is suitable for most standard and large blinds. The electronic limit switch allows precise adjustment and reliable operation, while the quiet motor (54 dB) ensures minimal disturbance. The motor is supplied as a spare part and does not include adaptors (crown, drive, or motor plate), which must be selected based on your tube profile.
Compatible with a range of Somfy RTS controls and accessories, including remotes, wall switches, solar panels, and smart home hubs, the Roll Up 28 Wirefree RTS motor is a flexible and future-proof choice for modern window automation.
Motor
- Control Protocol: SOMFY RTS
- Cut off Date: 18/12/2025, 5pm
- Accessory Type: Motor
- Motorisation Brand: Somfy
- Power:
- Rechargeable Battery
- 12v Plug in Power Supply
| File Name | Size | Date | |
|---|---|---|---|
| Chart-Tube-Motor-adapters-interior-Roll-Up-28-RTS-Li-Ion-Motor.pdfDownload | 58.52 KB | 18/09/2025 | |
| Compatibility-Matrix-Wirefree-Power-Supply-Roll-Up-28-RTS-Li-Ion-Motor.pdfDownload | 145.22 KB | 18/09/2025 |
- Product Code
- 1241444
- Motor Type
- Wirefree, battery-powered, radio-controlled (RTS)
- Power Supply
- 12V DC (rechargeable Li-ion battery, external battery pack, or 12V plug-in power supply)
- Rated Current
- 0.8 A
- Speed
- 28 rpm
- Torque
- 0.7 Nm
- Tube Compatibility
- Minimum 26.6mm internal diameter
- Motor Head Diameter
- 44 mm
- Limit Switch
- Electronic, 200 turns capacity
- Noise Level
- 54 dB
- Frequency
- 433.42 MHz (RTS)
- Range
- Up to 50m in open field
- Operating Temperature
- 0°C to 60°C
- Storage Temperature
- -20°C to 60°C
- Protection Index
- IP20 (indoor use)
- Dimensions
- Motor length approx. 355mm
- Weight
- Approx. 0.4 kg
- Cable
- No cable (wireless), rechargeable via connector
- Color/Finish
- Grey/Black
- Compatibility
- Somfy RTS remotes, wall switches, TaHoma, solar panel, and accessories
- Warranty
- 5 years (as per most UK suppliers)
- Contents
- 1 motor, 1 leaflet (adapters not included)
- Limitations
- Not suitable for outdoor use; adapters must be selected separately
- Unpack the Somfy Roll Up 28 Wirefree RTS motor and ensure all components are present.
- Select and fit the correct adaptors (crown, drive, and motor plate) for your blind tube (not included).
- Insert the motor into the blind tube, ensuring a secure fit.
- Mount the blind and motor assembly in your window as per manufacturer instructions.
- Connect the rechargeable battery pack or 12V power supply to the motor.
- Pair the motor with your Somfy RTS remote or wall switch by following the programming instructions.
- Set the upper and lower limit positions using the remote or switch.
- Test the operation and adjust limits as needed.

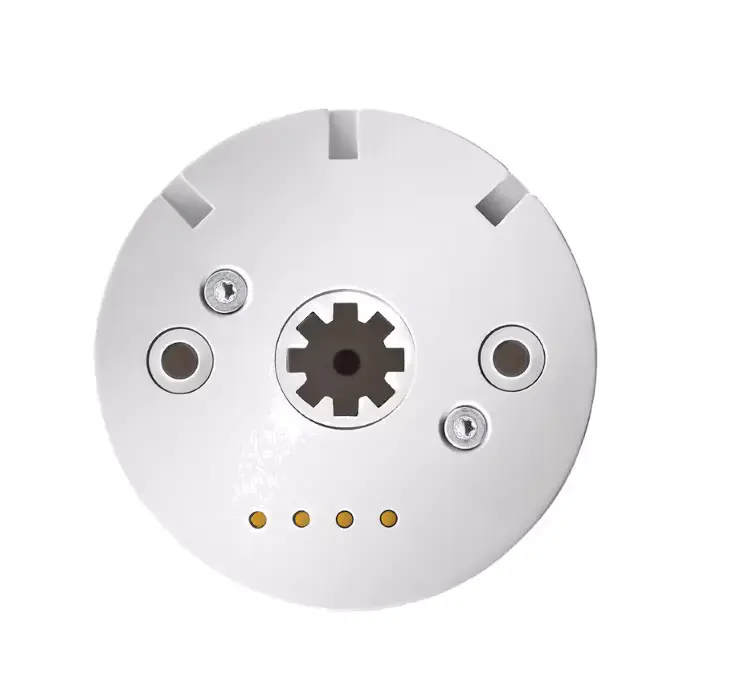

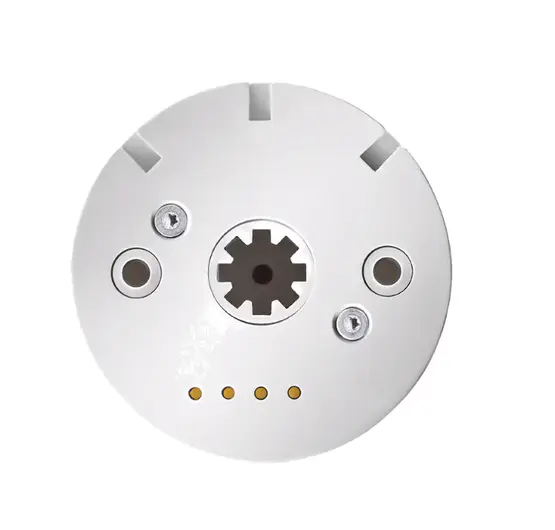

- Recharge the battery as required using the connector on the motor head.
- Refer to the user manual for advanced programming or troubleshooting.
